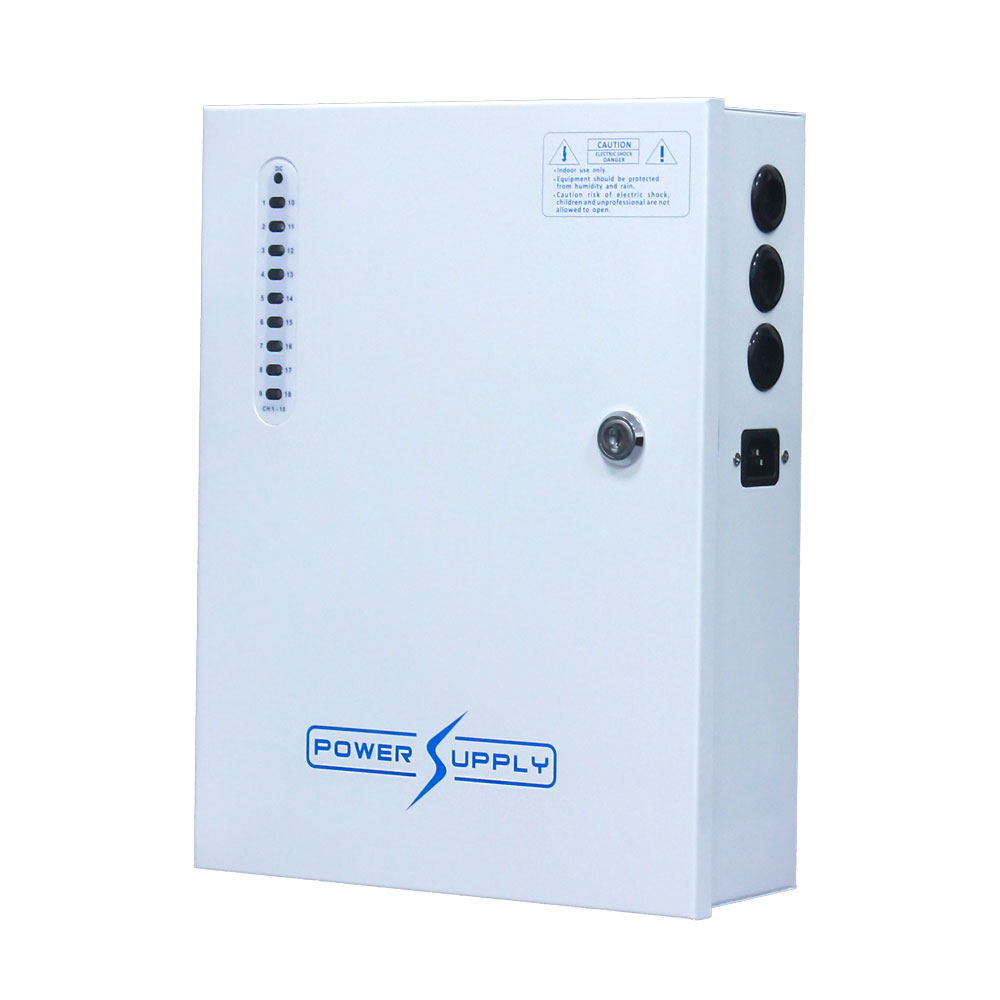

UPS power supply box output: 12VDC, 18CH, 20A

Beschrijving

Features
– Power supply in metallic box of 16 total outputs 12V / 20A
– White housing for wall installation
– Universal AC input range: 96V ~ 264V AC
– Individual 16-channel tube fuse, the fuse is automatically cut off while a short circuit, current overload or overload occurs in a single channel and keeps the entire power system operating correctly
– Configured with backup battery interface and charge / discharge function, which guarantees a continuous power supply in case of power outages
– External LED indicator for each channel output
– Incorporates EMI wave filter, 100% full load burn test
– Long life electrolytic capacitors 105 ° C
– High efficiency, long service life, high reliability

Specifications
– Input voltage of 96V ~ 264V AC
– Input current: <3A
– Input frequency range: 47 ~ 63Hz
– Input efficiency: ≥85%
– Protection against 40A / 240V input surges
– Output voltage of 13V ~ 15V DC
– Rated output current: 20A
– Output current range: 0 ~ 20A
– Nominal power: 276W
– 16 channels of power output
– Space for 2 batteries of 7Ah or 1 17-22Ah battery
– Operating temperature: -20 ° C ~ + 70 ° C
– Operating relative humidity of 20% ~ 90%
– Storage temperature: -40 ° C ~ + 85 ° C
– Relative storage humidity of 20% ~ 95%
– Lockable box for wall mounting
– Individual protection by fuse
– Dimensions: 320.5 x 250 x 80 mm
– Weight: 2.3 kg
