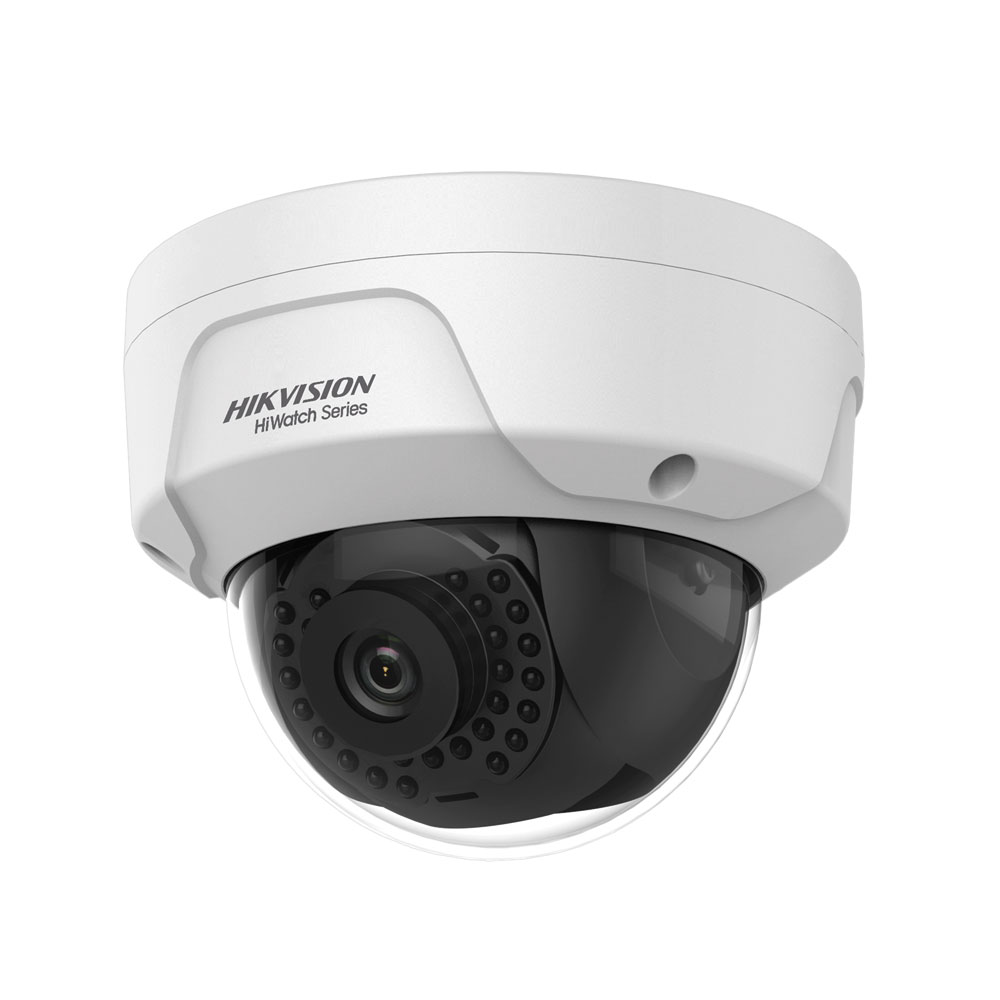

HWI-D140H(2.8mm)(C)

Beschrijving

Key features
• 1/3″ CMOS sensor,Progressive Scan
• H.265+, H.265, H.264+, H.264
• 2560×1440@20fps
• Dual stream
• IR up to 30 meters
• 2,8 mm fixed lens
• 3D-DNR
• Digital WDR
• IP67
• IK10
• PoE supported

Specs
– 1/3” CMOS sensor, 4 MP
– Digital resolution: 4MP (2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P (1280×720)
– H.265+/H.265/H.264+/H.264
– Stream 1: 4MP (20 fps), 3MP/1080P/720P (25 fps)
– Stream 2: 640×480/640×360/320×240 (25 fps)
– Day/night mode with removable mechanical filter
– IR illumination: 30 m
– Minimum illumination: 0,01 lux F1.2 color / 0,028 lux F2.0 color
– 2,8 mm fixed lens (100°)
– OSD menu, AGC, BLC, digital WDR, 3D-DNR
– 1 fixed ROI stream 1 and stream 2
– Motion detection and privacy mask
– Adjustment: brightness, saturation, contrast, sharpness, mirror mode, image rotation
– Network interface: RJ45 (10/100 Base-T)
– Network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
– Compatible with ONVIF (profile S/G), ISAPI
– Compatible with software iVMS-4200, Hik-Connect and iVMS-5200
– Power supply: 12V DC, max 5,5W
– PoE 802.3af (36V ~ 57V DC; 0,2A ~ 0,1A; max. 7W)
– Working temperature -30°C ~ +50°C
– RH: <95%, without condensation
– IP67
– IK10
– Metal and plastic case
– Dimensions: Ø111 x 82,4 mm
– Weight: 410 g
– 2AXIS: wall and ceiling installation
– Reset button
– Power supply is not included
