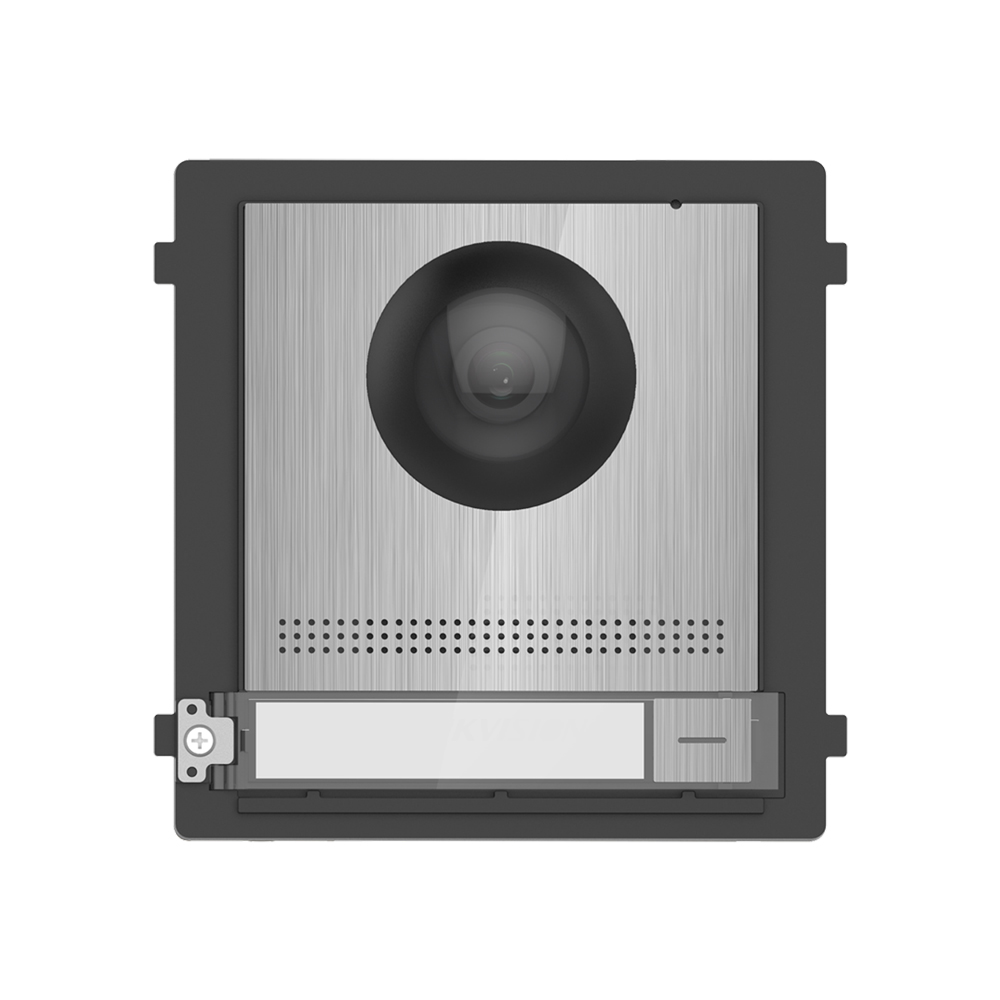

DS-KD8003-IME1/S

Beschrijving

Characteristics

2 megapixel video intercom function
Access control function
Noise suppression and noise cancellation
low lighting
Tampering alarm
Fisheye camera with infrared lighting supplement
Supports access to up to 7 submodules
Name tag customization
easy to expand
Specifications

Embedded MCU Processor
Embedded Linux operating system
Operating method by physical buttons
2 megapixel low light camera with infrared illumination
H.264 video compression
Main stream resolution: 1080P (1920×1080)
Secondary stream resolution: 720×480
Backlight compensation BLC
WDR
Digital Noise Reduction DNR
View Angle: 180°(H), 96°(V)
Includes omnidirectional microphone
Incorporates loudspeaker (>85dB at 20 cm)
Audio compression G.711U
64Kbps audio compression rate
Noise suppression and echo cancellation
Up to 2000 users
Up to 10,000 cards
10/100Mbps auto-adaptive Ethernet port
Protocols: TCP/IP, RSTP
Tampering alarm
1 connection module
2 door contact inputs
2 exit button inputs
4 inputs/outputs
1 debugging interface
2 door control interfaces
Power: 12V DC
Consumption: 4W
Supports PoE (802.3af)
Operating temperature -40°C ~ +55°C
Operating humidity of 10% ~ 95%
Dimensions: 99.8(W) x 98(H) x 43.9mm
Weight: 375g
