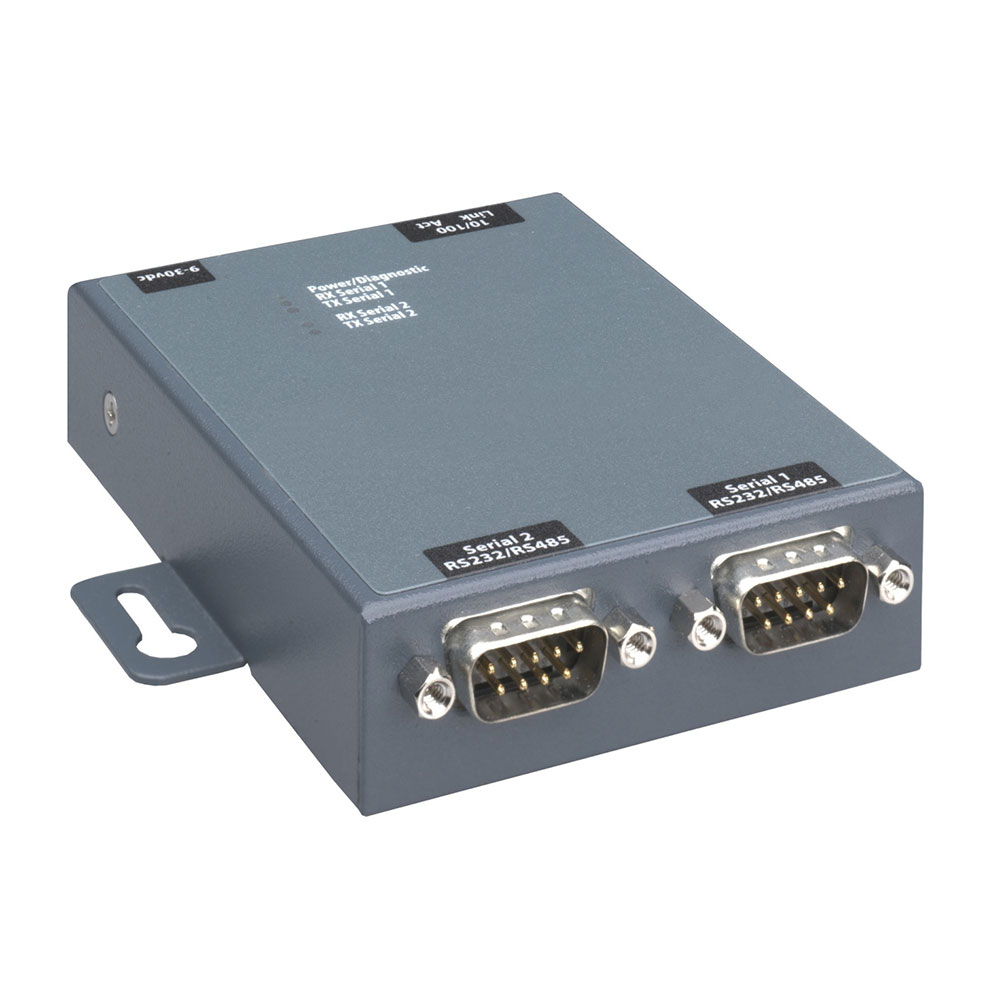

CONVERSOR SERIE RS232 PARA POS 2 PUERTO

Beschrijving

Features
– Device network connection in minutes
– Access, monitoring and device control via Ethernet
– Replace dedicated PC or modem with fast ethernet network devices
– Fast&easy configuration via HTTP, DHCP, Telnet, Serial or Lantronix DeviceInstaller
utility
– 2x DTE DB9M serial port, (RS232, RS422 and RS485 supported)
– RoHS and WEE
– Truport Com port technology control

Specs

– Server device
– Installed processors: 1×48 MHz
– RAM: 256 KB SRAM
– Flash: 2 MB
– Protocol: Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
– Network protocols: TCP/IP, UDP/IP, ICMP/IP
– Status indicators: Link activity, duplex mode power port, state
– Features: Flow control, DHCP support, ARP support, manageable, half duplex mode, full duplex mode
– Communication ports: 2 x RS-232/422/485 – DB-9, 1 x 100Base-TX – RJ-45
– Compliant Standards: FCC Clase B , FCC Clase A, CSA, UL, TUV, VCCI, CISPR 22 clase A, cUL, EN 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55022 class A, ICES-003 class A, RoHS, WEEE
– Power supply: 120V AC / 230V AC
– Working consumption: 1.8W
– Working temperature: 0ºC ~ +60ºC
– Dimensions: 72 x 23 x 95 mm
– Weight: 400 g
